CM1214A - 1- and 2-Channel PicoGuard AC Signal ESD Protector

ON Semiconductor

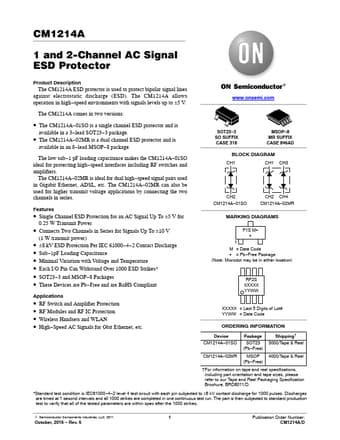

CM1214A Datasheet Preview — Preview of CM1214A PDF

Datasheet Details

Part number	CM1214A
Manufacturer	ON Semiconductor ↗
File Size	356.42 KB
Description	1- and 2-Channel PicoGuard AC Signal ESD Protector
Datasheet	CM1214A_ONSemiconductor.pdf

CM1214A Product details

Description

The CM1214A ESD protector is used to protect bipolar signal lines against electrostatic discharge (ESD).The CM1214A allows operation in high speed environments with signals levels up to ±5 V. The CM1214A 01SO is a single channel ESD protector and is available in a 3 lead SOT23 3 package. The CM1214A 02MR is a dual channel ESD protector and is available in an 8 lead MSOP

Features

Single Channel ESD Protection for an AC Signal Up To ±5 V for 0.25 W Transmit Power.
Connects Two Channels in Series for Signals Up To ±10 V (1 W transmit power).
±8 kV ESD Protection Per IEC 61000.
4.
2 Contact Discharge.
Sub.
1pF Loading Capacitance.
Minimal Variation with Voltage and Temperature.
Each I/O Pin Can Withstand Over 1000 ESD Strikes.
SOT23.
3 and MSOP.
8 Packages.
These.
