CM1216 6 and 8-Channel Low Capacitance ESD Arrays

📥 Download Datasheet  Datasheet Preview Page 1

Description

6 and 8-Channel Low Capacitance ESD Arrays CM1216 .
The CM1216 family of diode arrays provide sESD protection for electronic components or sub-systems requiring minimal capacitive loading.

📥 Download Datasheet

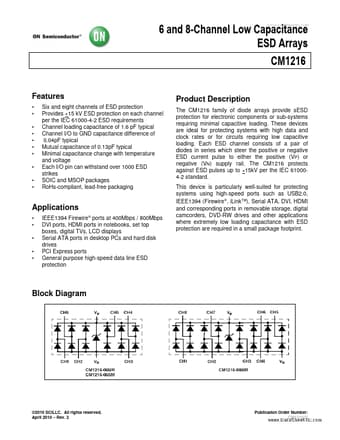

Preview of CM1216 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* Six and eight channels of ESD protection Provides +15 kV ESD protection on each channel per the IEC 61000-4-2 ESD requirements Channel loading capacitance of 1.6 pF typical Channel I/O to GND capacita

Applications

* where extremely low loading capacitance with ESD protection are required in a small package footprint. Applications
* IEEE1394 Firewire® ports at 400Mbps / 800Mbps DVI ports, HDMI ports in notebooks, set top boxes, digital TVs, LCD displays Serial ATA
