CVA2412AX Datasheet, Driver, Calogic LLC

CVA2412AX Features

• Driver DESCRIPTION The CVA2412AX is a very low cost solution for high resolution monitors. The device can be used with pre-amps, where the common emitter transistor is already a part of the pr

PDF File Details

Part number:

CVA2412AX

Manufacturer:

Calogic LLC

File Size:

50.47kb

Download:

📄 Datasheet

Description:

Low cost 100mhz triple crt driver. The CVA2412AX is a very low cost solution for high resolution monitors. The device can be used with pre-amps, where the common emitte

CVA2412AX Application

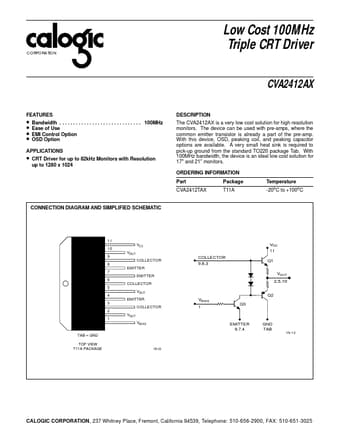

• Applications CRT Driver for up to 82kHz Monitors with Resolution up to 1280 x 1024 CONNECTION DIAGRAM AND SIMPLIFIED SCHEMATIC 11 10 9 8 EMITTER 7
