CVA2417TX Datasheet, Driver, Calogic LLC

CVA2417TX Features

• Driver DESCRIPTION The CVA2417TX is an improved version that features excellent gray scale linearity with no crossover distortion and less EMI. Designed especially to drive high resolution mon

PDF File Details

Part number:

CVA2417TX

Manufacturer:

Calogic LLC

File Size:

46.99kb

Download:

📄 Datasheet

Description:

Improved triple 85mhz crt driver. The CVA2417TX is an improved version that features excellent gray scale linearity with no crossover distortion and less EMI. Designed

CVA2417TX Application

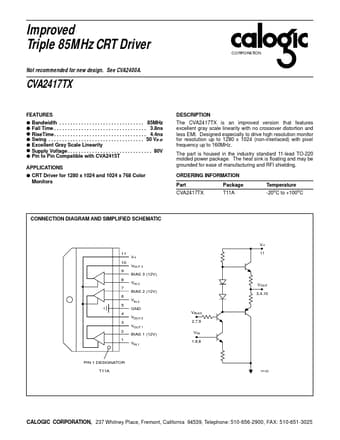

• Applications CONNECTION DIAGRAM AND SIMPLIFIED SCHEMATIC V+ 11 10 9 8 7 6 5 4 3 2 1 V+ VOUT 3 BIAS 3 (12V) VIN 3 BIAS 2 (12V) VIN 2 GND VOUT 2 VOU
