CVA24150T 180V CRT Driver

Calogic LLC

Description

180V CRT Driver CORPORATION CVA24150T .
The CVA24150T is a single channel, very high voltage amplifier, designed to drive a CRT.

📥 Download Datasheet

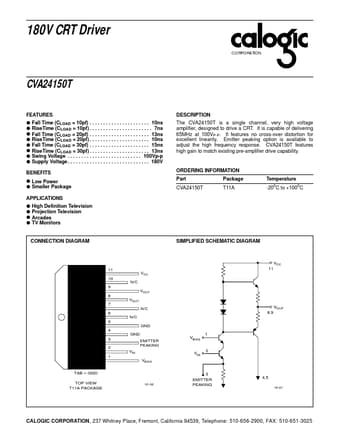

CVA24150T Datasheet Preview — Preview of CVA24150T PDF

Datasheet Specifications

Part number: CVA24150T
Manufacturer: Calogic LLC
File Size: 57.40 KB
Datasheet: CVA24150T_CalogicLLC.pdf
Description: 180V CRT Driver

Applications

* High Definition Television
* Projection Television
* Arcades
* TV Monitors CONNECTION DIAGRAM SIMPLIFIED SCHEMATIC DIAGRAM VCC 11 10 9 8 7 6 N/C 5 GND 4 3 2 1 GND EMITTER PEAKING N/C VOUT 11 VCC VOUT N/C VOUT 8,9 VBIAS VIN 1 VIN VBIAS 2 TAB = GND TOP VIEW
