CVA2419TX Datasheet, Driver, Calogic LLC

CVA2419TX Features

• Driver DESCRIPTION The CVA2419TX contains three wide bandwidth, large signal amplifiers designed specially to drive high resolution color monitors. This device will provide excellent drive cap

PDF File Details

Part number:

CVA2419TX

Manufacturer:

Calogic LLC

File Size:

65.85kb

Download:

📄 Datasheet

Description:

Triple 85mhz crt driver. The CVA2419TX contains three wide bandwidth, large signal amplifiers designed specially to drive high resolution color monitors. This

CVA2419TX Application

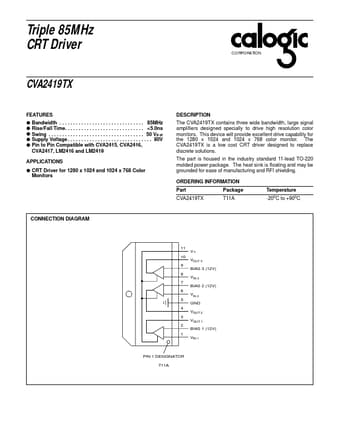

• Applications CONNECTION DIAGRAM 11 10 9 8 7 6 5 4 3 2 1 V+ VOUT 3 BIAS 3 (12V) VIN 3 BIAS 2 (12V) VIN 2 GND VOUT 2 VOUT 1 BIAS 1 (12V) VIN 1 PIN
