SD200, (SD200 - SD203) High-Speed Analog N-Channel Enhancement-Mode DMOS FETS

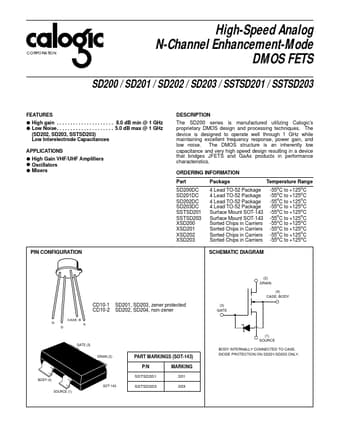

CORPORATION High-Speed Analog N-Channel Enhancement-Mode DMOS FETS SD200 / SD201 / SD202 / SD203 / SSTSD201 / SSTSD203 .
The SD200 series is manufactured utilizing Calogic’s proprietary DMOS design and processing techniques.

datasheet Preview Page 1 from Datasheet4u.com

SD200_Calogic.pdf

SD200 Datasheet Preview — Preview of SD200 PDF

Datasheet Details

Part number:

SD200

Manufacturer:

Calogic

File Size:

32.21 KB

Description:

(SD200 - SD203) High-Speed Analog N-Channel Enhancement-Mode DMOS FETS

Features

* High gain
* . 8.0 dB min @ 1 GHz
* Low Noise

Applications

* High Gain VHF/UHF Amplifiers
* Oscillators
* Mixers PIN CONFIGURATION (2) DRAIN (4) CASE, BODY CD10-1 CD10-2 G D CASE, B S SD201, SD203, zener protected SD202, SD204, non-zener (3) GATE (1) SOURCE GATE (3) DRAIN (2) PART MARKINGS (SOT-143) P/N MARKING 201 203 BODY
