SD2000A Integrated TFT LCD Display Controller

www.DataSheet4U.com www.smartasic.com SD2000A Integrated TFT LCD Display Controller The SmartASIC SD2000A is a highly integrated TFT LCD controller chip with the latest SmartASIC advanced imageprocessing technology and an integrated ADC/PLL to form up an ultra low cost solution supporting analog input. The SD2000A has advanced programmable non-linear parametric cubic based scaling engine with proprietary sharpness adjustment and text enhancement. The SD2000A has robust handling of a w.

SD2000A Features

* Integrated high speed triple 8-bit ADC/PLL support up to 100MHz for XGA-75Hz Advanced image processing with proprietary non linear parametric cubic based scaling engine Robust auto configuration for input mode detection and clock frequency and phase recovery f

SD2000A Datasheet (60.42 KB)

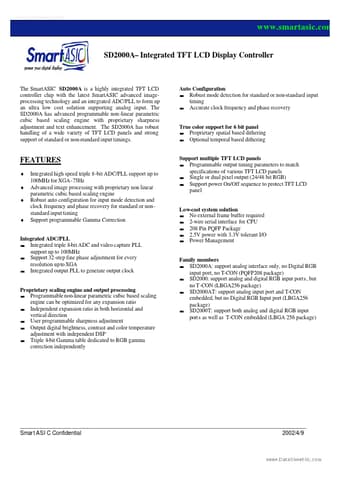

SD2000A Datasheet Preview — Preview of SD2000A PDF

Datasheet Details

Part number:

SD2000A

Manufacturer:

SmartASIC

File Size:

60.42 KB

Description:

Integrated tft lcd display controller.
