Part number: 24WC04
Manufacturer: Catalyst Semiconductor
File Size: 44.14KB
Download: 📄 Datasheet

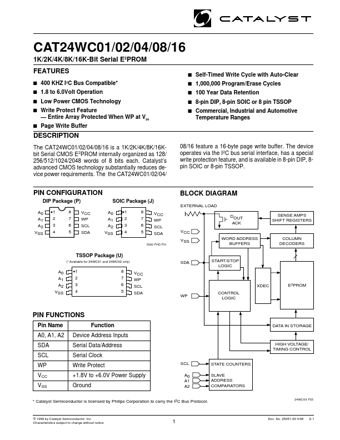

Description: CAT24WC04
s 400 KHZ I2C Bus Compatible* s 1.8 to 6.0Volt Operation s Low Power CMOS Technology s Write Protect Feature
— Entire Array Protected When WP at VIH s Page Write Buffer
D.
s Self-Timed Write Cycle with Auto-Clear s 1,000,000 Program/Erase Cycles s 100 Year Data Retention s 8-pin DIP, 8-pin SOIC or 8 pin TSSOP s Commercial, Industrial and Automotive
Temperature Ranges
The CAT24WC01/02/04/08/16 is a 1K/2K/4K/8K/16Kbit .
