24WC16P - 1K/2K/4K/8K/16K-Bit Serial E2PROM

Catalyst Semiconductor

📥 Download Datasheet

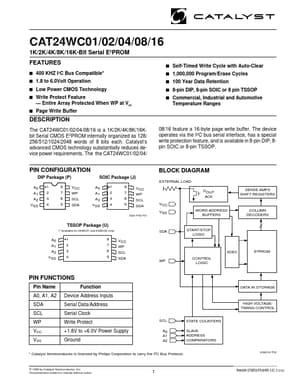

24WC16P Datasheet Preview — Preview of 24WC16P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: 24WC16P
Manufacturer: Catalyst Semiconductor
File Size: 84.11 KB
Datasheet: 24WC16P_CatalystSemiconductor.pdf
Description: 1K/2K/4K/8K/16K-Bit Serial E2PROM

24WC16P Product details

Description

The CAT24WC01/02/04/08/16 is a 1K/2K/4K/8K/16Kbit Serial CMOS E2PROM internally organized as 128/ 256/512/1024/2048 words of 8 bits each.

Features

s 400 KHZ I C Bus Compatible.
s 1.8 to 6.0Volt Operation s Low Power CMOS Technology s Write Protect Feature 2 s Self-Timed Write Cycle with Auto-Clear s 1,000,000 Program/Erase Cycles s 100 Year Data Retention s 8-pin DIP, 8-pin SOIC or 8 pin TSSOP s Commercial, Industrial and Automotive.
Entire Array Protected When WP at VIH s Page Write Buffer Temperature Ranges.
