24WC32 - 32K/64K-Bit I2C Serial CMOS E2PROM

Product Overview

📥 Download Datasheet

24WC32 32K/64K-Bit I2C Serial CMOS E2PROM by CatalystSemiconductor - Datasheet Preview — Datasheet preview – 24WC32

Datasheet Details

Part number	24WC32
Manufacturer	CatalystSemiconductor
File Size	74.93 KB
Description	32K/64K-Bit I2C Serial CMOS E2PROM
Datasheet	24WC32 Datasheet

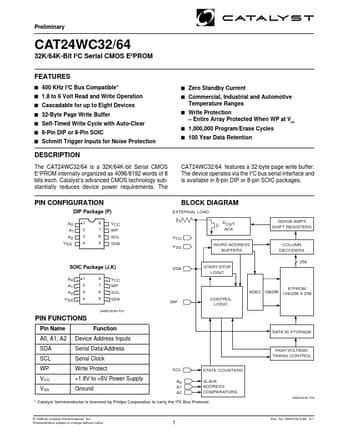

Additional preview pages of the 24WC32 datasheet.

Product details

Description

The CAT24WC32/64 is a 32K/64K-bit Serial CMOS E2PROM internally organized as 4096/8192 words of 8 bits each.

Features

s 400 KHz I2C Bus Compatible.
s 1.8 to 6 Volt Read and Write Operation s Cascadable for up to Eight Devices s 32-Byte Page Write Buffer s Self-Timed Write Cycle with Auto-Clear s 8-Pin DIP or 8-Pin SOIC s Schmitt Trigger Inputs for Noise Protection s Zero Standby Current s Commercial, Industrial and Automotive Temperature Ranges s Write Protection.
Entire Array Protected When WP at VIH s 1,000,000 Program/Erase Cycles s 100 Year Data Retention.
