AT93C86 Datasheet - Catalyst Semiconductor

1K/2K/2K/4K/16K-Bit Microwire Serial E2PROM

AT93C86 Features

* s High Speed Operation: s Power-Up Inadvertant Write Protection s 1,000,000 Program/Erase Cycles s 100 Year Data Retention s Commercial, Industrial and Automotive

* 93C46/56/57/66: 1MHz

* 93C86: 3MHz s Low Power CMOS Technology s 1.8 to 6.0 Volt Operation s Selectable x8 or x16 Memo

AT93C86 General Description

The CAT93C46/56/57/66/86 are 1K/2K/2K/4K/16K-bit Serial E2PROM memory devices which are configured as either registers of 16 bits (ORG pin at VCC) or 8 bits (ORG pin at GND). Each register can be written (or read) serially by using the DI (or DO) pin. The CAT93C46/56/ 57/66/86 are manufactured using.

AT93C86 Datasheet (61.50 KB)

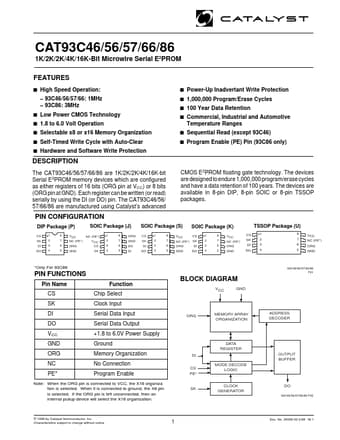

AT93C86 Datasheet Preview — Preview of AT93C86 PDF

Datasheet Details

Part number:

AT93C86

Manufacturer:

Catalyst Semiconductor

File Size:

61.50 KB

Description:

1k/2k/2k/4k/16k-bit microwire serial e2prom.
