AT93C56

3-wire Serial EEPROMs

AT93C56 Features

* Low-voltage and Standard-voltage Operation

* 2.7 (VCC = 2.7V to 5.5V)

* 1.8 (VCC = 1.8V to 5.5V)

* User-selectable Internal Organization

* 1K: 128 x 8 or 64 x 16

* 2K: 256 x 8 or 128 x 16

* 4K: 512 x 8 or 256 x 16

* Three-wire Serial

AT93C56 General Description

The AT93C46/56/66 provides 1024/2048/4096 bits of serial electrically erasable programmable read-only memory (EEPROM), organized as 64/128/256 words of 16 bits each (when the ORG pin is connected to VCC), and 128/256/512 words of 8 bits each (when the ORG pin is tied to ground). The device is optim.

AT93C56 Datasheet (321.39 KB)

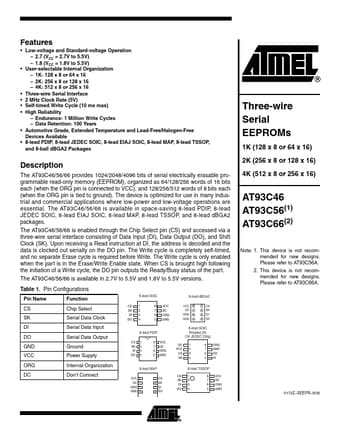

Preview of AT93C56 PDF

Datasheet Details

Part number:

AT93C56

Manufacturer:

ATMEL Corporation

File Size:

321.39 KB

Description:

3-wire serial eeproms.
