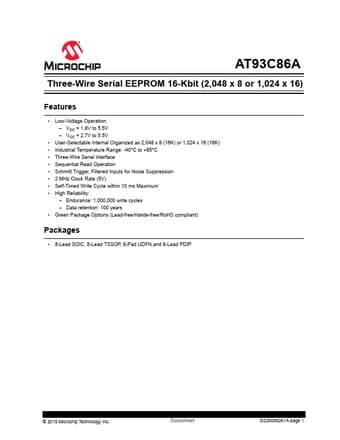

AT93C86A

Three-Wire Serial EEPROM

Microchip

AT93C86A Features

* Low-Voltage Operation:

* VCC = 1.8V to 5.5V

* VCC = 2.7V to 5.5V

* User-Selectable Internal Organized as 2,048 x 8 (16K) or 1,024 x 16 (16K)

* Industrial Temperature Range: -40°C to +85°C

* Three-Wire Serial Interface

* Sequential Read Operat

AT93C86A General Description

5 2.1. Chip Select (CS)5 2.2. Serial Data Clock (SK) 5 2.3. Serial Data Input (DI)5 2.4. Serial Data Output (DO) 5 2.5. Ground (GND) 5 2.6. Internal Organization (ORG) 6 2.7. Device Power Supply (VCC) 6 3. Description 7 3.1. Block Diagram 7 4. Electrical Characteristics8 4.1. Absolute Maximum Ratin.

AT93C86A Datasheet (1.08 MB)
