AT93C46E - 3-wire Serial EEPROM

Product Overview

ATMEL Corporation

📥 Download Datasheet

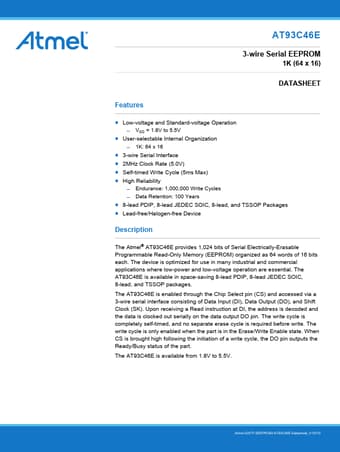

AT93C46E 3-wire Serial EEPROM by ATMEL Corporation - Datasheet Preview — Datasheet preview – AT93C46E

Datasheet Details

Part number	AT93C46E
Manufacturer	ATMEL Corporation
File Size	371.73 KB
Description	3-wire Serial EEPROM
Datasheet	AT93C46E Datasheet
Additional preview pages of the AT93C46E datasheet.

Product details

Description

The Atmel® AT93C46E provides 1,024 bits of Serial Electrically-Erasable Programmable Read-Only Memory (EEPROM) organized as 64 words of 16 bits each.

Features

Low-voltage and Standard-voltage Operation ̶ VCC = 1.8V to 5.5V.
User-selectable Internal Organization ̶ 1K: 64 x 16.
3-wire Serial Interface.
2MHz Clock Rate (5.0V).
Self-timed Write Cycle (5ms Max).
High Reliability ̶ Endurance: 1,000,000 Write Cycles ̶ Data Retention: 100 Years.
8-lead PDIP, 8-lead JEDEC SOIC, 8-lead, and TSSOP Packages.
Lead-free/Halogen-free Device.
