CAT24FC65 (CAT24FC65 / CAT24FC66) 64K-Bit I2C Serial CMOS EEPROM

CAT24FC65 Description

CAT24FC65, CAT24FC66 64K-Bit I2C Serial CMOS EEPROM with Partial Array Write Protection .
The CAT24FC65/66 is a 64k-bit Serial CMOS EEPROM internally organized as 8,192 words of 8 bits each.

CAT24FC65 Features

* I Fast mode I2C bus compatible
* I Max clock frequency: I 5 ms max write cycle time I Write protect feature - 400KHz for VCC=2.5V to 5.5V I Schmitt trigger filtered inputs for noise suppression I Low power CMOS technology I 64-byte page write buffer I Self-timed write cycle with auto-clear I In

📥 Download Datasheet

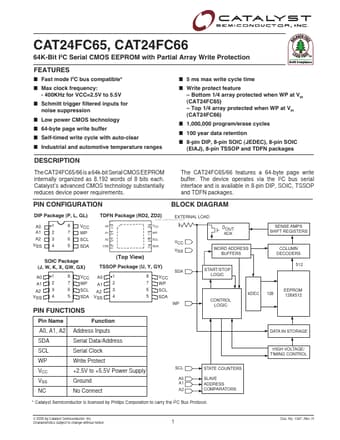

Preview of CAT24FC65 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CAT24FC65
Manufacturer
Catalyst Semiconductor
File Size
472.63 KB
Datasheet
CAT24FC65_CatalystSemiconductor.pdf
Description
(CAT24FC65 / CAT24FC66) 64K-Bit I2C Serial CMOS EEPROM
