CAT28C64B 64K-Bit CMOS PARALLEL E2PROM

The CAT28C64B is a fast, low power, 5V-only CMOS Parallel EEPROM organized as 8K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protect.

CAT28C64B Features

* I Fast read access times:

* 90/120/150ns I Low power CMOS dissipation:

* Active: 25 mA max.

* Standby: 100 µA max. I Simple write operation:

* On-chip address and data latches

* Self-timed write cycle with auto-clear I Fast write cycle time:

* 5ms max.

CAT28C64B_CatalystSemiconductor.pdf

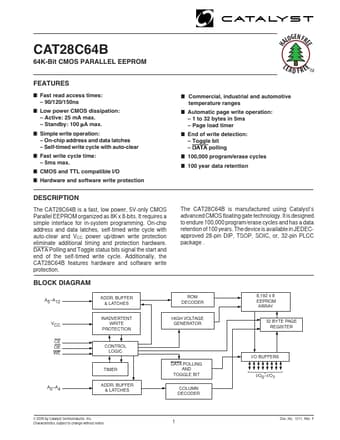

CAT28C64B Datasheet Preview — Preview of CAT28C64B PDF

Datasheet Details

Part number:

CAT28C64B

Manufacturer:

Catalyst Semiconductor

File Size:

410.12 KB

Description:

64k-bit cmos parallel e2prom.
