CAT28C16A

16K-Bit CMOS PARALLEL E2PROM

CAT28C16A Features

* s Fast Read Access Times: 200 ns s Low Power CMOS Dissipation: s End of Write Detection: DATA Polling s Hardware Write Protection s CMOS and TTL Compatible I/O s 10,000 Program/Erase Cycles s 10 Year Data Retention s Commercial, Industrial and Automotive

* Active: 25 mA Max.

* Standby

CAT28C16A General Description

The CAT28C16A is a fast, low power, 5V-only CMOS Parallel E2PROM organized as 2K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protect.

CAT28C16A Datasheet (54.46 KB)

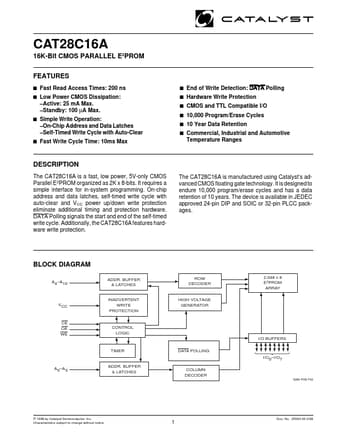

Preview of CAT28C16A PDF

Datasheet Details

Part number:

CAT28C16A

Manufacturer:

Catalyst Semiconductor

File Size:

54.46 KB

Description:

16k-bit cmos parallel e2prom.
