CAT28C17A

16K-Bit CMOS PARALLEL E2PROM

CAT28C17A Features

* s Fast Read Access Times: 200 ns s Low Power CMOS Dissipation: s End of Write Detection:

* Active: 25 mA Max.

* Standby: 100 µA Max. s Simple Write Operation:

* DATA Polling

* RDY/BSY Pin s Hardware Write Protection s CMOS and TTL Compatible I/O s 10,000 Program/Erase C

CAT28C17A General Description

The CAT28C17A is a fast, low power, 5V-only CMOS parallel E2PROM organized as 2K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protect.

CAT28C17A Datasheet (59.31 KB)

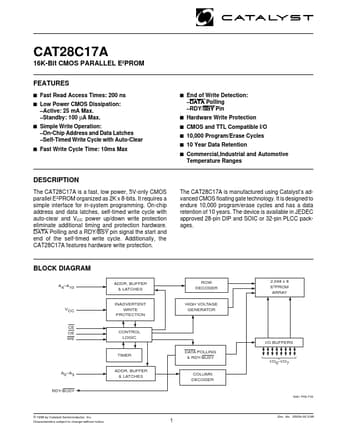

Preview of CAT28C17A PDF

Datasheet Details

Part number:

CAT28C17A

Manufacturer:

Catalyst Semiconductor

File Size:

59.31 KB

Description:

16k-bit cmos parallel e2prom.
