CAT28C513 - 512K-Bit CMOS PARALLEL E2PROM

Product Overview

Catalyst Semiconductor

📥 Download Datasheet

CAT28C513 512K-Bit CMOS PARALLEL E2PROM by Catalyst Semiconductor - Datasheet Preview — Datasheet preview – CAT28C513

Datasheet Details

Part number	CAT28C513
Manufacturer	Catalyst Semiconductor
File Size	97.27 KB
Description	512K-Bit CMOS PARALLEL E2PROM
Datasheet	CAT28C513 Datasheet

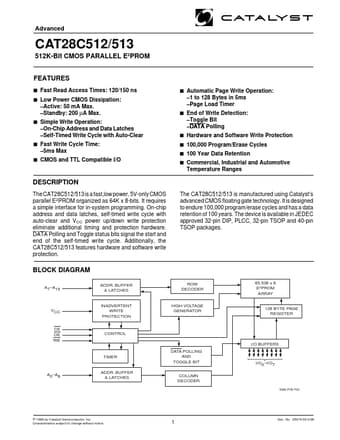

Additional preview pages of the CAT28C513 datasheet.

Product details

Description

The CAT28C512/513 is a fast,low power, 5V-only CMOS parallel E2PROM organized as 64K x 8-bits.

Features

s Fast Read Access Times: 120/150 ns s Low Power CMOS Dissipation: s Automatic Page Write Operation:.
Active: 50 mA Max.
Standby: 200 µA Max. s Simple Write Operation:.
1 to 128 Bytes in 5ms.
Page Load Timer s End of Write Detection:.
On-Chip Address and Data Latches.
Self-Timed Write Cycle with Auto-Clear s Fast Write Cycle Time:.
Toggle Bit.
DATA Polling s Hardware and Software Write Protection s 100,000 Program/Erase Cycles.
