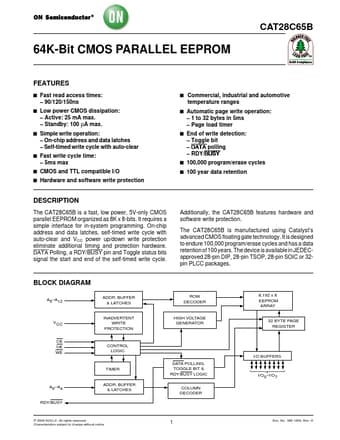

CAT28C65B 64K-Bit CMOS PARALLEL EEPROM

The CAT28C65B is a fast, low power, 5V-only CMOS parallel EEPROM organized as 8K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with auto-clear and VCC power up/down write protection eliminate additional timing and protect.

CAT28C65B Features

* s Fast read access times:

* 90/120/150ns s Low power CMOS dissipation:

* Active: 25 mA max.

* Standby: 100 µA max. s Simple write operation:

* On-chip address and data latches

* Self-timed write cycle with auto-clear s Fast write cycle time:

* 5ms max
