CAT28C256

32K-Bit Parallel E2PROM

CAT28C256 Features

* s Fast Read Access Times: 120/150ns s Low Power CMOS Dissipation: s Hardware and Software Write Protection s Automatic Page Write Operation:

* Active: 25 mA Max.

* Standby: 150 µA Max. s Simple Write Operation:

* 1 to 64 Bytes in 5ms

* Page Load Timer s End of Write Det

CAT28C256 General Description

The CAT28C256 is a fast, low power, 5V-only CMOS parallel E2PROM organized as 32K x 8-bits. It requires a simple interface for in-system programming. On-chip address and data latches, self-timed write cycle with autoclear and VCC power up/down write protection eliminate additional timing and protect.

CAT28C256 Datasheet (75.01 KB)

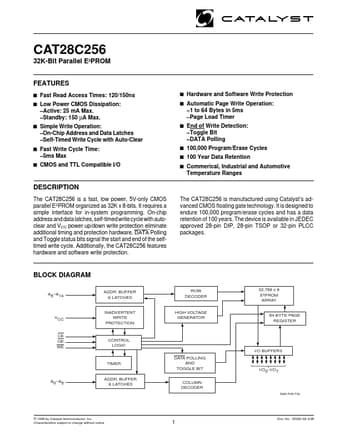

Preview of CAT28C256 PDF

Datasheet Details

Part number:

CAT28C256

Manufacturer:

Catalyst Semiconductor

File Size:

75.01 KB

Description:

32k-bit parallel e2prom.
