1N5394, 1N5391, SILICON RECTIFIERS

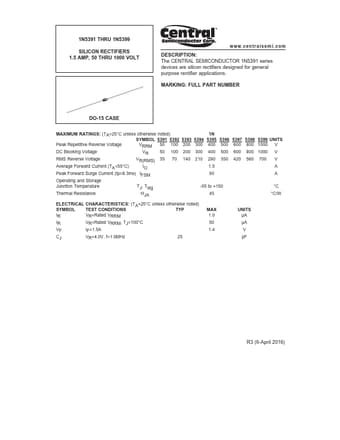

1N5391 THRU 1N5399 SILICON RECTIFIERS 1.5 AMP, 50 THRU 1000 VOLT Central w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 1N5391 series devices are silicon rectifiers designed for general purpose rectifier applications.

1N5391-CentralSemiconductor.pdf

1N5394 Datasheet Preview — This datasheet PDF includes multiple part numbers: 1N5394, 1N5391. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1N5394, 1N5391

Manufacturer:

Central Semiconductor ↗

File Size:

139.72 KB

Description:

SILICON RECTIFIERS

Note:

This datasheet PDF includes multiple part numbers: 1N5394, 1N5391.
Please refer to the document for exact specifications by model.

Applications

* MARKING: FULL PART NUMBER DO-15 CASE MAXIMUM RATINGS: (TA=25°C unless otherwise noted) 1N SYMBOL 5391 5392 5393 5394 5395 5396 5397 5398 5399 UNITS Peak Repetitive Reverse Voltage VRRM 50 100 200 300 400 500 600 800 1000 V DC Blocking Voltage VR 50 100 200 300 400 500 600 800 1000 V RMS Re
