2N4424 SILICON NPN TRANSISTORS

2N4424 Description

2N4424 SILICON NPN TRANSISTOR w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR 2N4424 is a silicon NPN epitaxial planar transistor designed for general purpose amplifier applications.

2N4424 Applications

* MARKING: FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA 60 40 5.0 5

📥 Download Datasheet

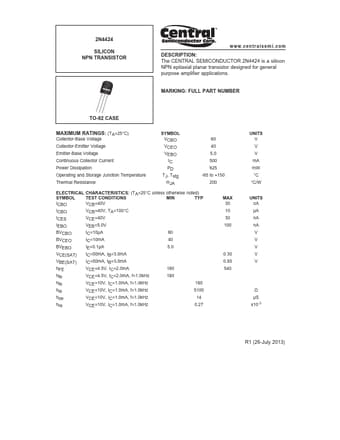

Preview of 2N4424 PDF
datasheet Preview Page 2 datasheet Preview Page 3
