CXT5401E - SURFACE MOUNT PNP SILICON TRANSISTOR

CXT5401E Description

CXT5401E ENHANCED SPECIFICATION SURFACE MOUNT PNP SILICON TRANSISTOR w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CXT5401E is a PNP Silicon Transistor, packaged in an SOT-89 case, designed for general purpose amplifier applications requi.

CXT5401E Features

* High Collector Breakdown Voltage: 250V
* Low Leakage Current: 50nA MAX
* Low Saturation Voltage: 150mV MAX @ 50mA
* Complementary Device: CXT5551E
* SOT-89 Surface Mount Package MAXIMUM RATINGS: (TA=25°C)
* Collector-Base Voltage
* Collecto

CXT5401E Applications

* requiring high breakdown voltage. MARKING: FULL PART NUMBER SOT-89 CASE APPLICATIONS:
* General purpose switching and amplification

📥 Download Datasheet

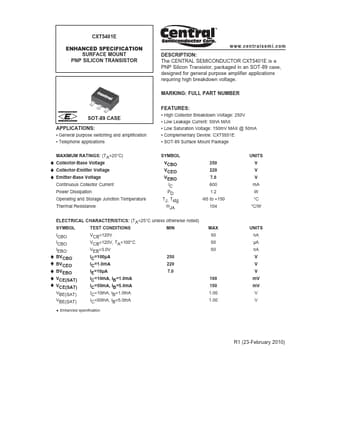

Preview of CXT5401E PDF
datasheet Preview Page 2
