CXT5551HC - SURFACE MOUNT NPN SILICON TRANSISTOR

CXT5551HC Description

CXT5551HC SURFACE MOUNT HIGH CURRENT NPN SILICON TRANSISTOR SOT-89 CASE w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR CXT5551HC type is an high current NPN silicon transistor manufactured by the epitaxial planar process, epoxy molded in a su.

CXT5551HC Applications

* MARKING: FULL PART NUMBER MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCEO VEBO IC PD TJ, Tstg ΘJA 180 160 6.0 1.0 1.2 -65

📥 Download Datasheet

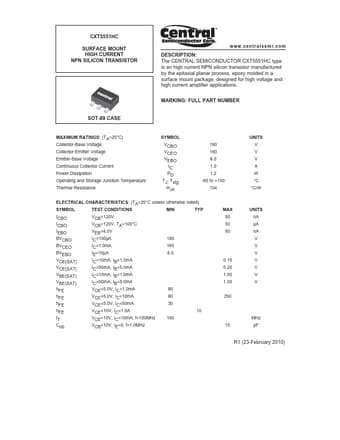

Preview of CXT5551HC PDF
datasheet Preview Page 2
