CT646CYF Datasheet - Central Technologies

CT646CYF - Power Inductors

SMD (shielded) power inductor Applications: Ideal for a variety of DC/DC converter applications and low profile use Operating Temperature: -30°C to +100°C Inductance Tolerance: ±20% Testing: Inductance is tested on an HP4285A at 100 kHz Packaging: Tape & Reel Marking: Parts are marked with inductan

Power Inductors - Shielded ctparts.com CT646CYF Series From 1.0 µH to 1000 µH Not shown at actual size.

SPECIFICATIONS Part numbers are marked to indicate tolerance available.

M = ±20% Maximum allowable DC current is that which causes a 10% inductance reduction from the initial value, or coil temperature to rise by 40°C, whichever is smaller.

(Reference ambient temperature 20°C).

Part Number CT646CYF-1R0M CT646CYF-1R2M CT646CYF-1R5M CT646CYF-2R2M CT646CYF-3R3M CT646CYF-4R7M CT646CYF-5R6

CT646CYF_CentralTechnologies.pdf

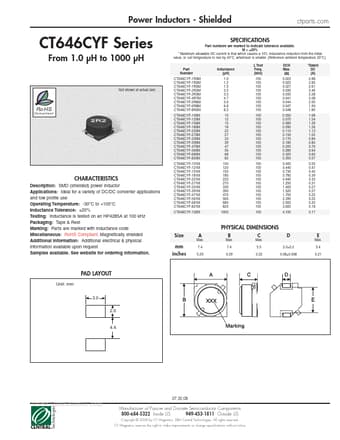

Preview of CT646CYF PDF

Datasheet Details

Part number:

CT646CYF

Manufacturer:

Central Technologies

File Size:

185.27 KB

Description:

Power inductors.
