CT60AM-18B RESONANT INVERTER USE

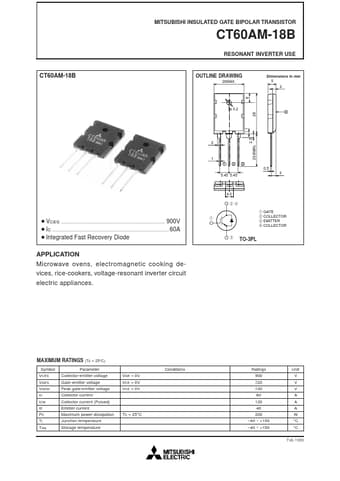

MITSUBISHI INSULATED GATE BIPOLAR TRANSISTOR CT60AM-18B RESONANT INVERTER USE CT60AM-18B OUTLINE DRAWING 20MAX. Dimensions in mm 5 2 6 φ 3.2 26 4 1 2 1 1 2 3 20.6MIN. 2.5 0.5 5.45 5.45 3 4.0 wr q GATE w COLLECTOR e EMITTER r COLLECTOR e ¡VCES 900V ¡IC 60A ¡Integrated Fast Recovery Diode q TO-3PL APPLICATION Microwave ovens, electromagnetic cooking devices, rice-cookers, voltage-resonant inverter circuit electric appliances. MAXIMUM RATINGS Symbol VCES VGES VGEM IC ICM IE PC T.
