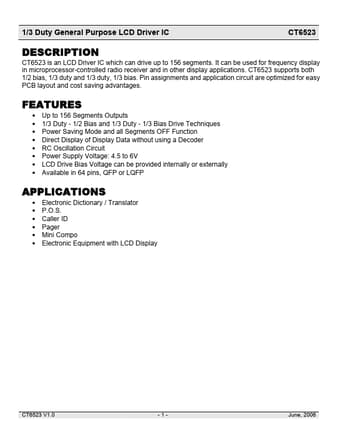

CT6523 Datasheet, IC, ETC

CT6523 Features

• Ic
• Up to 156 Segments Outputs
• 1/3 Duty - 1/2 Bias and 1/3 Duty - 1/3 Bias Drive Techniques
• Power Saving Mode and all Segments OFF Function
• Direct Di

PDF File Details

Part number:

CT6523

Manufacturer:

ETC

File Size:

709.64kb

Download:

📄 Datasheet

Description:

1/3 duty general purpose lcd driver ic. CT6523 is an LCD Driver IC which can drive up to 156 segments. It can be used for frequency display in microprocessor-controlled radi

CT6523 Application

• Applications CT6523 supports both 1/2 bias, 1/3 duty and 1/3 duty, 1/3 bias. Pin assignments and application circuit are optimized for easy PCB lay
