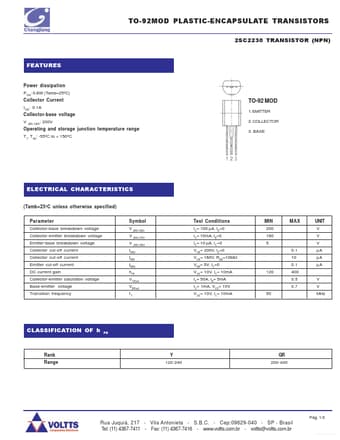

Part number:
2SC2230
Manufacturer:
Changjiang
File Size:
557.71 KB
Description:
Npn transistor.
* Power dissipation PCM: 0.8W (Tamb=25ºC) Collector Current ICM: 0.1A Collector-base voltage V (BR) CBO TO-92 MOD 1. EMITTER 2. COLLECTOR 3. BASE : 200V Operating and storage junction temperature range TJ, Tstg: -55ºC to + 150ºC ELECTRICAL CHARACTERISTICS (Tamb=25ºC unless otherwise specified) Pa
2SC2230
Changjiang
557.71 KB
Npn transistor.
