CS5112 Datasheet - Cherry Semiconductor Corporation

1.4A Switching Regulator

CS5112 Features

* s Linear Regulator 5V ± 2% @ 100mA s Switching Regulator 1.4A Peak Internal Switch 120kHz Maximum Switching Frequency 5V to 26V Operating Supply Range s Smart Functions Watchdog RESET ENABLE s Protection Overtemperature Current Limit Block Diagram VFB1 VFB2 SELECT COMP IBIAS COSC Oscillator Multipl

CS5112 General Description

The CS5112 is a dual output power supply integrated circuit. It contains a 5V ±2%, 100mA linear regulator, a watchdog timer, a linear output voltage monitor to provide a Power On Reset (POR) and a 1.4A current mode PWM switching regulator. The 5V linear regulator is comprised of an error amplifier, .

CS5112 Datasheet (199.49 KB)

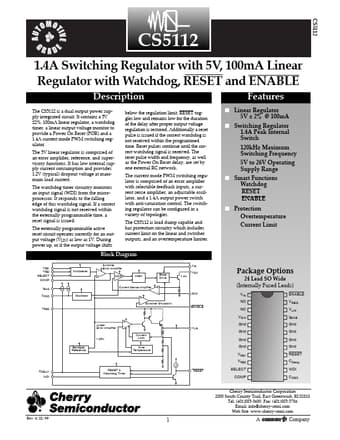

CS5112 Datasheet Preview — Preview of CS5112 PDF

Datasheet Details

Part number:

CS5112

Manufacturer:

Cherry Semiconductor Corporation

File Size:

199.49 KB

Description:

1.4a switching regulator.
