CS8191 - Precision Air-Core Tach/Speedo Driver with Short Circuit Protection

CS8191 Description

CS8191 CS8191 Precision Air-Core Tach/Speedo Driver with Short Circuit Protection .
The CS8191 is specifically designed for use with 4 quadrant air-core meter movements.

CS8191 Features

* s Direct Sensor Input s High Output Torque s Wide Output Voltage Range s High Impedance Inputs s Accurate down to 10V VCC s Fault Protection Overvoltage Short Circuit s Low Voltage Operation Absolute Maximum Ratings ( ² 100ms pulse transient) VCC = 60V (continuous) VCC = 24V Operating Temperature R

📥 Download Datasheet

Preview of CS8191 PDF

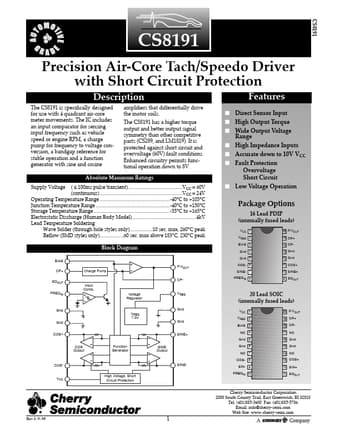

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS8191
Manufacturer
Cherry Semiconductor Corporation
File Size
186.23 KB
Datasheet
CS8191_CherrySemiconductorCorporation.pdf
Description
Precision Air-Core Tach/Speedo Driver with Short Circuit Protection
