CS8361

The CS8361 is 5V Dual Micropower Low Dropout Regulator designed by Cherry Semiconductor Corporation.

Product Overview

Cherry Semiconductor Corporation

Part number	CS8361
Manufacturer	Cherry Semiconductor Corporation
File Size	169.29 KB
Description	5V Dual Micropower Low Dropout Regulator
Datasheet	CS8361_CherrySemiconductorCorporation.pdf

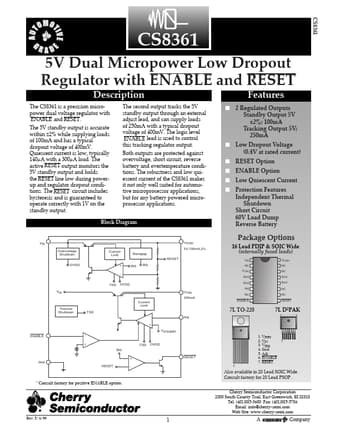

Additional preview pages of the CS8361 datasheet.

The CS8361 is a precision micropower dual voltage regulator with ENABLE and RESET .

s 2 Regulated Outputs Standby Output 5V ±2%; 100mA Tracking Output 5V; 250mA s Low Dropout Voltage (0.4V at rated current) s RESET Option s ENABLE Option s Low Quiescent Current s Protection Features Independent Thermal Shutdown Short Circuit 60V Load Dump Reverse Battery Block Diagram VIN Overvoltage Shutdown OVSD Current Limit +.
TSD VIN Current Limit Thermal Shutdown TSD.
+.
+ BG + Gnd RESET.
TSD OVSD.
