CS8321 - Micropower 5V/ 150mA Low Dropout Linear Regulator

CS8321 Description

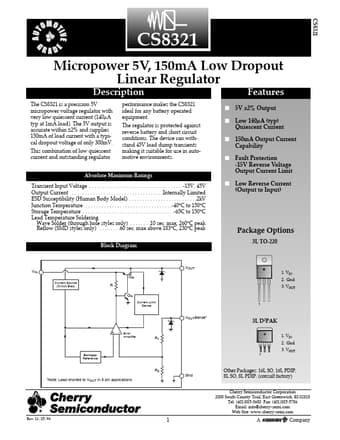

CS8321 CS8321 Micropower 5V, 150mA Low Dropout Linear Regulator .
The CS8321 is a precision 5V micropower voltage regulator with very low quiescent current (140µA typ at 1mA load).

CS8321 Features

* s 5V ±2% Output s Low 140µA (typ) Quiescent Current s 150mA Output Current Capability s Fault Protection -15V Reverse Voltage Output Current Limit s Low Reverse Current (Output to Input) Absolute Maximum Ratings Transient Input Voltage

CS8321 Applications

* Other Packages: 16L SO, 16L PDIP, 8L SO, 8L PDIP, (consult factory) Cherry Semiconductor Corporation 2000 South County Trail, East Greenwich, RI 02818 Tel: (401)885-3600 Fax: (401)885-5786 Email: info@cherry-semi. com Web Site: www. cherry-semi. com Rev. 11/25/96 1 A ¨ Company CS8321 Electrical
