CMDA48 Power LED (2.5 Watt)

CRI Ra 70 80 Forward Voltage (volts) Min./Typ./Max. V 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 View Angle (degrees) 2Θ 1/2 120 120 130 130 128 130 128 Thermal resistance (ºC /W) Rθ [4] 9 9 9 9 13 9 13 Symbol CMDA48CW15D13L P.

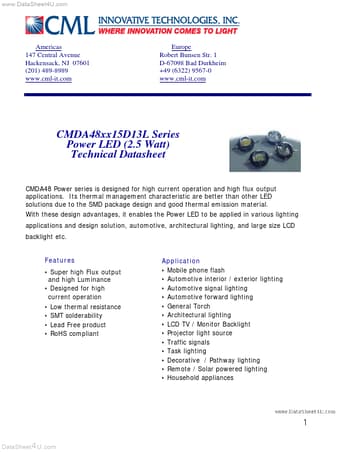

www.DataSheet4U.com Americas 147 Central Avenue Hackensack, NJ 07601 (201) 489-8989 www.cml-it.com Europe Robert Bunsen Str. 1 D-67098 Bad Durkheim +49 (6322) 9567-0 www.cml-it.com CMDA48xx15D13L Series Power LED (2.5 Watt) Technical Datasheet CMDA48 Power series is designed for high current operation and high flux output applications. Its thermal management characteristic are better than other LED solutions due to the SMD package design and good thermal emission material. With these design a.

CMDA48 Features

* Super high Flux output and high Luminance

* Designed for high current operation

* Low thermal resistance SMT solderability Lead Free product RoHS compliant Application

* Mobile phone flash

* Automotive interior / exterior light

CMDA48 Datasheet (448.98 KB)

CMDA48 Datasheet Preview — Preview of CMDA48 PDF

Datasheet Details

Part number:

CMDA48

Manufacturer:

Chicago Miniature Lamp

File Size:

448.98 KB

Description:

Power led (2.5 watt).
