CMDA49 (CMDA49 / CMDA50) Power LED (2.5 Watt) Technical Datasheet

CRI Ra 70 80 Forward Voltage (volts) Min./Typ./Max. V 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 View Angle (degrees) 2Θ 1/2 120 120 130 130 128 130 128 Thermal resistance (ºC /W) Rθ [4] 9 9 9 9 13 9 13 Symbol CMDA49CW15D13L P.

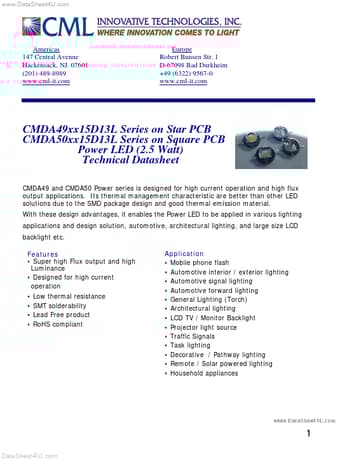

www.DataSheet4U.com Americas 147 Central Avenue Hackensack, NJ 07601 (201) 489-8989 www.cml-it.com Europe Robert Bunsen Str. 1 D-67098 Bad Durkheim +49 (6322) 9567-0 www.cml-it.com CMDA49xx15D13L Series on Star PCB CMDA50xx15D13L Series on Square PCB Power LED (2.5 Watt) Technical Datasheet CMDA49 and CMDA50 Power series is designed for high current operation and high flux output applications. Its thermal management characteristic are better than other LED solutions due to the SMD package des.

CMDA49 Features

* Super high Flux output and high Luminance

* Designed for high current operation

* Low thermal resistance SMT solderability Lead Free product RoHS compliant Application

* Mobile phone flash

* Automotive interior / exterior lighti
