CMDA42 - Power LED (1watt) Technical Datasheet

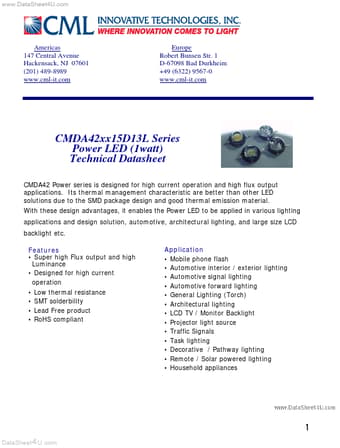

The CMDA42 by Chicago Miniature Lamp is a Power LED (1watt) Technical Datasheet. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the CMDA42 Power LED (1watt) Technical Datasheet datasheet (Chicago Miniature Lamp).

Datasheet Details

Part number CMDA42
Manufacturer Chicago Miniature Lamp
File Size 634.86 KB
Description Power LED (1watt) Technical Datasheet
Datasheet download datasheet CMDA42_ChicagoMiniatureLamp.pdf
Additional preview pages of the CMDA42 datasheet.

CMDA42 Product details

Description

CRI Ra 76 76 Forward Voltage (volts) Min./Typ./Max.V 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 3.0 / 3.4 / 4.3 2.0 / 2.5 / 3.0 View Angle (degrees) 2Θ 1/2 120 120 130 130 128 130 128 Thermal resistance (ºC /W) Rθ [4] 16 16 16 16 19 16 19 Symbol CMDA42CW15D13L Pure White CMDA42WW15D13L Warm White CMDA42CB15D13L Blue CMDA42AG15D13L Green CMDA42AR15D13L Red CMDA42GB15D13L Cyan CMDA42DY15D13L Amber λD 455 / 460 / 475 520 / 527 / 535 620 / 625 / 630 500 /
