C704S0 - IEEE 802.11BGN 1T1R & BT4.0 Combo SDIO LGA Module

📥 Download Datasheet

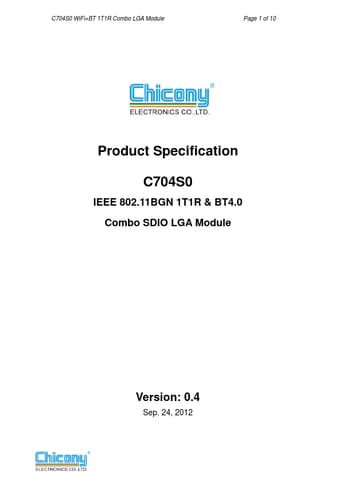

C704S0 Datasheet Preview — Preview of C704S0 PDF

Datasheet Details

Part number: C704S0
Manufacturer: Chicony
File Size: 296.56 KB
Datasheet: C704S0-Chicony.pdf
Description: IEEE 802.11BGN 1T1R & BT4.0 Combo SDIO LGA Module

C704S0 Product details

Description

of Change Preliminary specification release Update RF specification Update Pin definitions Update power consumption, RF specifications C704S0 WiFi+BT 1T1R Combo LGA Module Page 3 of 10 C704S0 IEEE 802.11 BGN 1T1R + BT 4.0 Combo SDIO LGA Module 1 Product

Features

WLAN - Complies with IEEE802.11 b/g/n 1T1R standard for 2.4GHz band, supports 20MHz and 40MHz bandwidth transmission, Short Guard Interval (400ns) - Supports 802.11e QoS Enhancement (WMM) and 802.11i (WPA, WPA2) - Frame aggregation for increased MAC efficiency (A-MSDU, A-MPDU) - Low latency immediate High-Throughput Block Acknowledgement (HT-BA) - PHY-level spoofing to enhance legacy compatibility - Power saving mechanism - Channel management and co-existence - Transmit Opportunity (TXOP).
