CS0402 - SMD Wire Wound Ceramic Chip Inductors

CS0402 Description

SMD Wire Wound Ceramic Chip Inductors - CS Series CS Series Due to accurate wire winding technology, these chip inductors are designed for filtering,.

CS0402 Features

* RoHS Compliant
* Ceramic body and wire wound construction provide high SRFs
* Exceptional Q values even at high frequencies
* Highest possible SRFs as well as excellent Q values
* The non-magnetic coil form assures utmost thermal stability, predictability and batch consistency

CS0402 Applications

* RF products for cellular phone
* GPS receiver
* Base Station
* Repeater
* Wireless LAN/ mouse/ keyboard/ earphone
* Remote control
* Security system and other RF modules Shape and Dimensions / Recommended Pattern CS0402 CS0603/0805/1008 Dimensions A Max CS0402 inc

📥 Download Datasheet

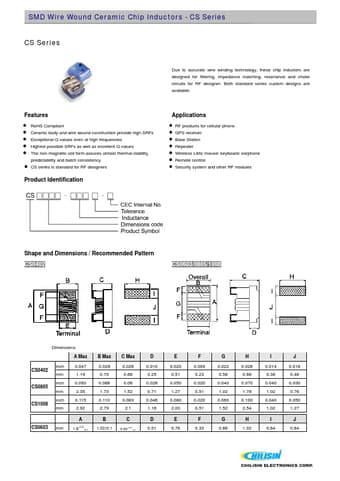

Preview of CS0402 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CS0402
Manufacturer
Chilisin Electronics
File Size
451.21 KB
Datasheet
CS0402-ChilisinElectronics.pdf
Description
SMD Wire Wound Ceramic Chip Inductors
