MXT08N04T

N-Channel Enhancement Mode Power MOSFET

MXT08N04T Features

* APPLICATION

* VDS=40V, ID=400A

* Power appliances RDS(ON)(Typ.)=1.1mΩ @ VGS=4.5V

* High power inverter system RDS(ON)(Typ.)=0.85mΩ @ VGS=10V

* Power tool appliances

* Surface-mounted package

* Advanced trench cell design

* Super Trench PINOUT D Tek G Pin 1 2/3

MXT08N04T Datasheet (855.11 KB)

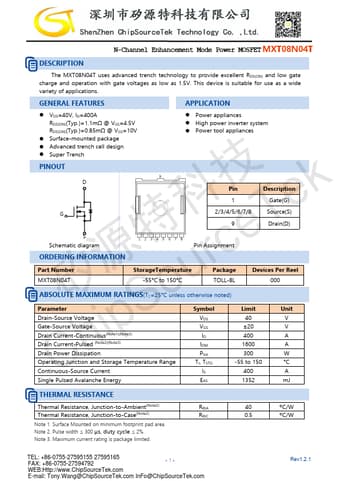

Preview of MXT08N04T PDF

Datasheet Details

Part number:

MXT08N04T

Manufacturer:

ChipSourceTek

File Size:

855.11 KB

Description:

N-channel enhancement mode power mosfet.
