mXT1664T2-C2U - maXTouch 1792-node Touchscreen Controller

ATMEL

📥 Download Datasheet

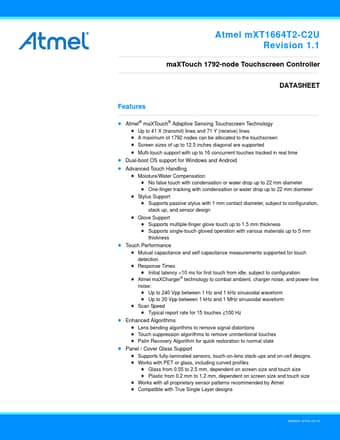

mXT1664T2-C2U Datasheet Preview — Preview of mXT1664T2-C2U PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	mXT1664T2-C2U
Manufacturer	ATMEL ↗
File Size	1.02 MB
Description	maXTouch 1792-node Touchscreen Controller
Datasheet	mXT1664T2-C2U-ATMEL.pdf

mXT1664T2-C2U Product details

Features

Atmel® maXTouch® Adaptive Sensing Touchscreen Technology.
Up to 41 X (transmit) lines and 71 Y (receive) lines.
A maximum of 1792 nodes can be allocated to the touchscreen.
Screen sizes of up to 12.5 inches diagonal are supported.
Multi-touch support with up to 16 concurrent touches tracked in real time.
Dual-boot OS support for Windows and Android.
Advanced Touch Handling.
Moisture/Water Compensation.
No false touch with condensation or water drop u.
