mXT2954T2 - maXTouch 2911-node Touchscreen Controller

ATMEL

📥 Download Datasheet

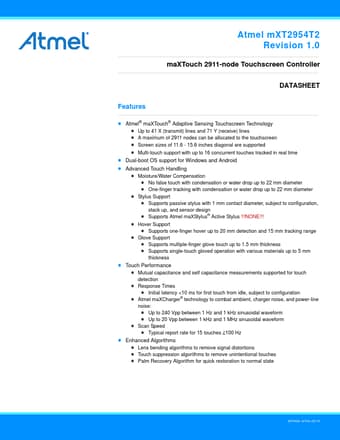

mXT2954T2 Datasheet Preview — Preview of mXT2954T2 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	mXT2954T2
Manufacturer	ATMEL ↗
File Size	1.01 MB
Description	maXTouch 2911-node Touchscreen Controller
Datasheet	mXT2954T2-ATMEL.pdf

mXT2954T2 Product details

Features

Atmel® maXTouch® Adaptive Sensing Touchscreen Technology.
Up to 41 X (transmit) lines and 71 Y (receive) lines.
A maximum of 2911 nodes can be allocated to the touchscreen.
Screen sizes of 11.6 - 15.6 inches diagonal are supported.
Multi-touch support with up to 16 concurrent touches tracked in real time.
Dual-boot OS support for Windows and Android.
Advanced Touch Handling.
Moisture/Water Compensation.
No false touch with condensation or water drop.
