mXT1188S - 1188-channel Touchscreen Controller

ATMEL

📥 Download Datasheet

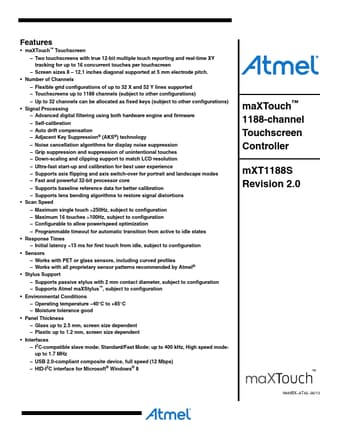

mXT1188S Datasheet Preview — Preview of mXT1188S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	mXT1188S
Manufacturer	ATMEL ↗
File Size	2.24 MB
Description	1188-channel Touchscreen Controller
Datasheet	mXT1188S-ATMEL.pdf

mXT1188S Product details

Features

maXTouch™ Touchscreen.
Two touchscreens with true 12-bit multiple touch reporting and real-time XY tracking for up to 16 concurrent touches per touchscreen.
Screen sizes 8.
12.1 inches diagonal supported at 5 mm electrode pitch.
Number of Channels.
Flexible grid configurations of up to 32 X and 52 Y lines supported.
Touchscreens up to 1188 channels (subject to other configurations).
Up to 32 channels can be allocated as fi.
