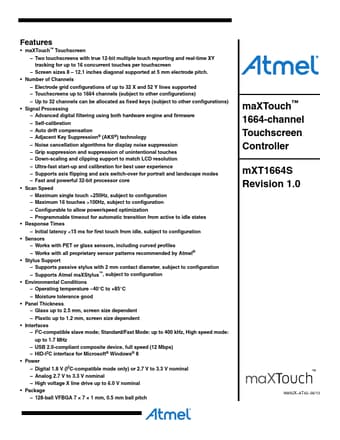

mXT1664S Datasheet Preview — Preview of mXT1664S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	mXT1664S
Manufacturer	ATMEL ↗
File Size	2.17 MB
Description	1664-channel Touchscreen Controller
Datasheet	mXT1664S-ATMEL.pdf

mXT1664S Product details

Features

maXTouch™ Touchscreen.
Two touchscreens with true 12-bit multiple touch reporting and real-time XY tracking for up to 16 concurrent touches per touchscreen.
Screen sizes 8.
12.1 inches diagonal supported at 5 mm electrode pitch.
Number of Channels.
Electrode grid configurations of up to 32 X and 52 Y lines supported.
Touchscreens up to 1664 channels (subject to other configurations).
Up to 32 channels can be allocated as f.
