mXT336S - maXTouch 336-channel Touchscreen Sensor

ATMEL

📥 Download Datasheet

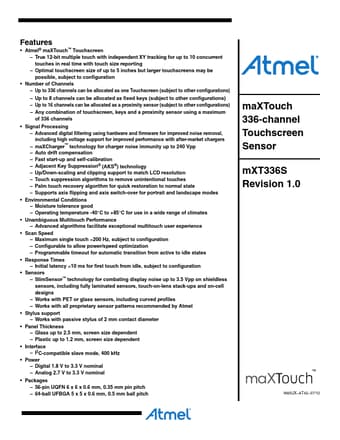

mXT336S Datasheet Preview — Preview of mXT336S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	mXT336S
Manufacturer	ATMEL ↗
File Size	1.60 MB
Description	maXTouch 336-channel Touchscreen Sensor
Datasheet	mXT336S-ATMEL.pdf

mXT336S Product details

Features

Atmel® maXTouch™ Touchscreen.
True 12-bit multiple touch with independent XY tracking for up to 10 concurrent touches in real time with touch size reporting.
Optimal touchscreen size of up to 5 inches but larger touchscreens may be possible, subject to configuration.
Number of Channels.
Up to 336 channels can be allocated as one Touchscreen (subject to other configurations).
Up to 8 channels can be allocated as fixed keys (subject to other c.
