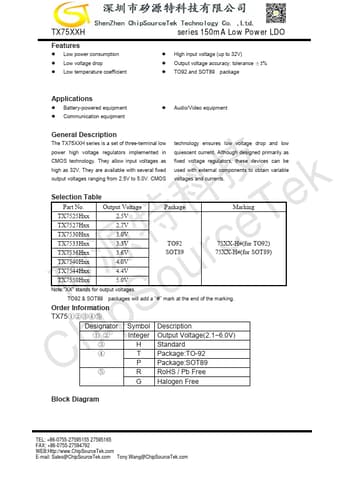

TX7540H 150mA Low Power LDO

The TX75XXH series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in quiescent current. Although designed primarily as CMOS technology. They allow input voltages as high as 32V. They are available with several fixed output volt.

TX7540H Features

* l Low power consumption l Low voltage drop l Low temperature coefficient series 150mA Low Power LDO l High input voltage (up to 32V) l Output voltage accuracy: tolerance ±3% l TO92 and SOT89 package Applications l Battery-powered equipment l Communication equipment l Audio/Video equipment Genera

TX7525H-ChipSourceTek.pdf
