TX7544H

150mA Low Power LDO

TX7544H Features

* l Low power consumption l Low voltage drop l Low temperature coefficient series 150mA Low Power LDO l High input voltage (up to 32V) l Output voltage accuracy: tolerance ±3% l TO92 and SOT89 package Applications l Battery-powered equipment l Communication equipment l Audio/Video equipment Genera

TX7544H General Description

The TX75XXH series is a set of three-terminal low technology ensures low voltage drop and low power high voltage regulators implemented in quiescent current. Although designed primarily as CMOS technology. They allow input voltages as high as 32V. They are available with several fixed output volt.

TX7544H Datasheet (1.12 MB)

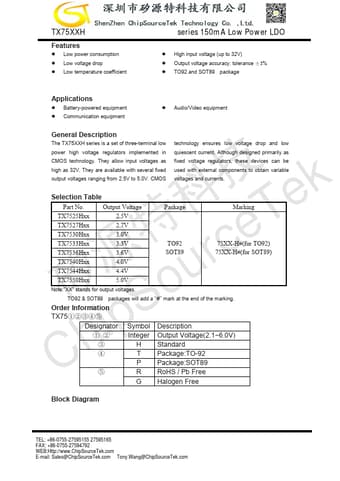

Preview of TX7544H PDF

Datasheet Details

Part number:

TX7544H

Manufacturer:

ChipSourceTek

File Size:

1.12 MB

Description:

150ma low power ldo.
