CA-IF4023 Datasheet - Chipanalog

AISG On and Off Keying Coax Modem Transceiver

CA-IF4023 Features

* Wide Receiver Input Dynamic Range

* -15dBm to +5dBm in 50Ω

* Adjustable Output Power (5.4dBm to 12dBm) Allows Compensation for Losses in External Circuitry and Cabling

* AISG V3.0-compliant Output Emission Profile

* Autodirection Output Simplifies Bus Arbitratio

CA-IF4023 General Description

The CA-IF4023 is an integrated AISG transceiver which is compliant with the Antenna Interface Standards Group v3.0 specification. Integrated on the chip are the transmitter, receiver, and active filters. This device reduces PART NUMBER CA-IF4023 Device Information PACKAGE BODY SIZE (NOM) QFN16 .

CA-IF4023 Datasheet (2.12 MB)

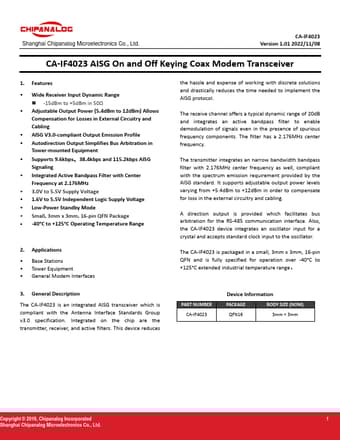

Preview of CA-IF4023 PDF

Datasheet Details

Part number:

CA-IF4023

Manufacturer:

Chipanalog

File Size:

2.12 MB

Description:

Aisg on and off keying coax modem transceiver.
