CA-IF43232E

3V to 5.5V Two-Channel RS-232 Transceiver

CA-IF43232E Features

* Meets or Exceeds the Requirements of the TIA/ EIA-232-F and ITU V.28 Standards

* Bus Pins (RINx and DOUTx) ESD Protection ▪ ±15kV HBM ESD ▪ ±8kV IEC 61000-4-2 Contact Discharge ▪ ±15kV IEC 61000-4-2 Air-gap Discharge

* Operates With 3-V to 5.5-V VCC Supply

* Two Dri

CA-IF43232E General Description

The CA-IF43232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit, which meets the requirements of the TIA/EIA-232-F and ITU V.28 standards and provides the electrical interface between an asynchronous communication controller and the serial-port connector. Thes.

CA-IF43232E Datasheet (729.42 KB)

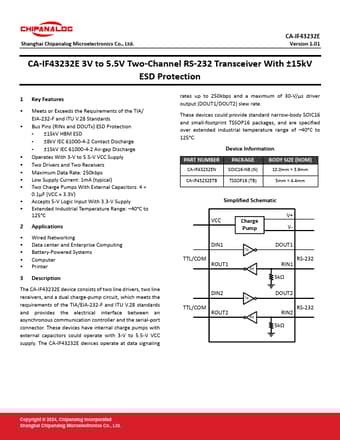

Preview of CA-IF43232E PDF

Datasheet Details

Part number:

CA-IF43232E

Manufacturer:

Chipanalog

File Size:

729.42 KB

Description:

3v to 5.5v two-channel rs-232 transceiver.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IF43232E Version 1.01 CA-IF43232E 3V to 5.5V Two-Channel RS-232 Transceiver With ±15kV ESD Protect.
