CA-IF4850

3.0V to 5.5V RS485/RS422 Transceiver

CA-IF4850 Features

* High-Performance and Compliant with RS-485 EIA/ TIA-485 Standard

* Low EMI 500kbps Data Rate (CA-IF4805) and up to 50Mbps (CA-IF4850), 20Mbps (CA-IF4820) High-Speed Data Rates

* 1/8 Unit Load Enables up to 256 Nodes on the Same Bus

* Integrated Protection for Robust Communi

CA-IF4850 General Description

The CA-IF48xx family of devices are low-power transceivers for RS-485/RS-422 communications in harsh environments. All devices have ±30V fault protection for overvoltage conditions on the bus lines that ensure robust protection Copyright © 2020, Chipanalog Incorporated Shanghai Chipanalog Microelect.

CA-IF4850 Datasheet (1.83 MB)

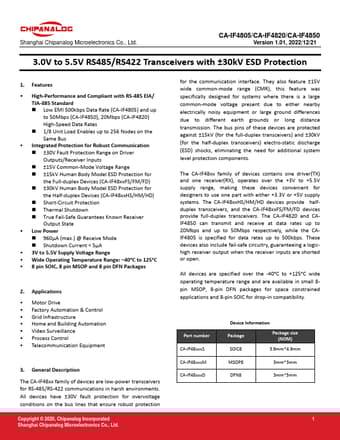

Preview of CA-IF4850 PDF

Datasheet Details

Part number:

CA-IF4850

Manufacturer:

Chipanalog

File Size:

1.83 MB

Description:

3.0v to 5.5v rs485/rs422 transceiver.
Shanghai Chipanalog Microelectronics Co., Ltd. CA-IF4805/CA-IF4820/CA-IF4850 Version 1.01, 2022/12/21 3.0V to 5.5V RS485/RS422 Transceivers with ±30.
